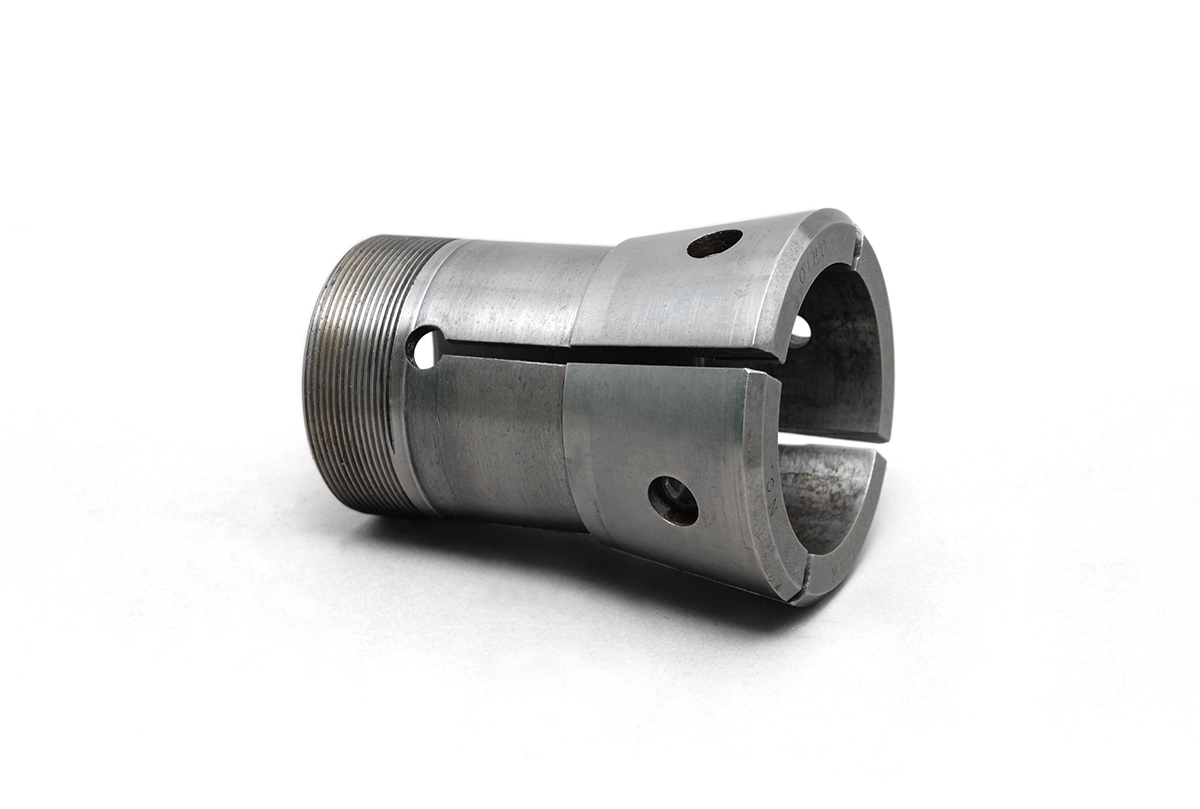

Master External Collets

Features:

  • Wide Range Less Cost
  • Fixed Position Design
  • Flat Tops for Location
  • Axial locator next to threads
  • Oversprung for Easy Loading

http://www.youtube.com/watch?v=PZxuy2Y5LTs Collet Video

http://www.zagar.com for Zagar Home Page

Specifications for Master External Collets

Collet type

22C

44C

Basic Number

707-310

791-1410

Angle of Top

10 degrees

15 degrees

Length

4.380

8.500

Height

3.245

4.625

Interior Length

2.310

4.625
