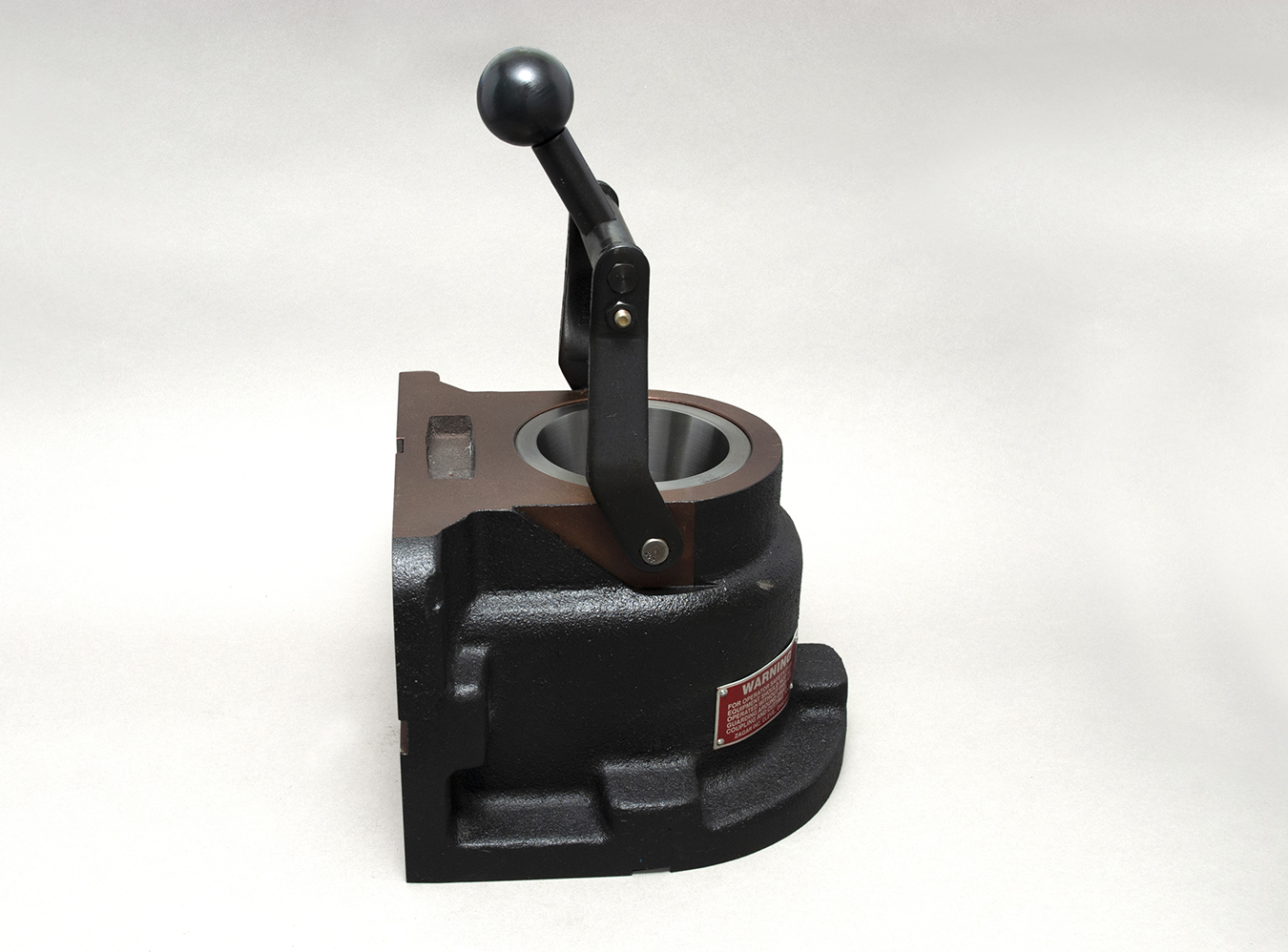

Vertical / Horizontal Holding Fixtures
Features:
- Large” Easy Grip” handles
- Positive Cam Lock Mechanism
- Internal Stops for Depth control
- Precision built to hold close tolerances
- Hardened and ground wearing pads
- Constructed from high grade steel
- Alterations available.
- Easily installed.
http://www.zagar.com for the Zagar Home Page
http://www.youtube.com/watch?v=PZxuy2Y5LTs for the Zagar Workholding Home Page.
Specifications:
|
Part no. |
Collet # |
Net Weight |
Size |
|
|
1/2″ Capacity Fixture |
707-3050 |
707-3029 |
6 Lbs. |
4.13″ length x 3.38″ wide x 3.18″ tall |
|
1″ Capacity Fixture |
707-350-4 |
707-178 (5C) |
12.5 Lbs. |
9.12″ length x 5.00″wide x 4.41″ tall |
|
2″ Capacity Fixture |
707-400-2 |
707-310 |
34.5 Lbs. |
11.38″ length x 6.06″ wide x 8.00 “tall |
